Low scatter, Low Absorption, Low Loss, our Ion-Beam Sputtered Coatings are second to none. Armed with a large selection of target materials, we have the unique capability of providing our customers with a full range of optical coatings. These dense and durable coatings can be designed to meet a variety needs. From High Reflector to Anti-Reflector; Polarized to Non-Polarized Beam Splitters, or anything in between, our coating team can design a coating to meet your needs.
Exceptional Characteristics!
- Low Scatter < 5 ppm
- Low Absorption < 5 ppm
- Total Loss < 15 ppm
- Uniformity Better than 1%
- Environmentally Stable
- Excellent Adhesion Properties
- High Damage Threshold
- Highly Repeatable Processes

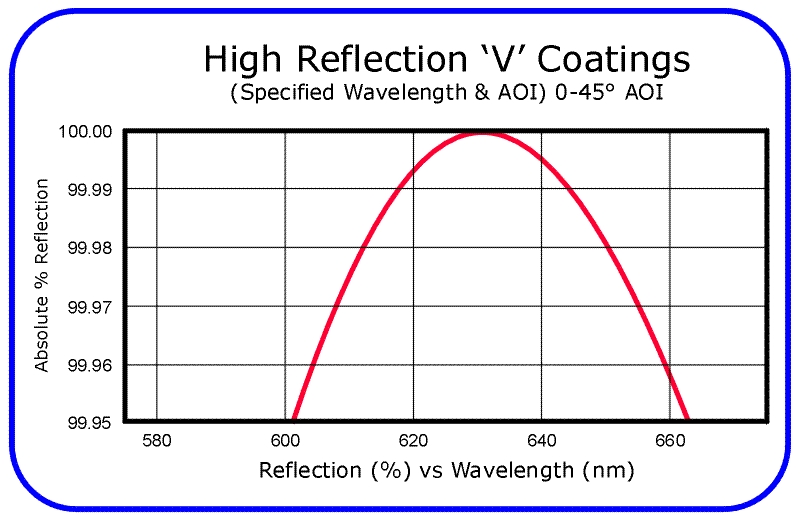

High Reflection ‘V’
Dielectric Coatings
- Total Loss as low as 15 ppm (scatter & absorption)
- High Reflection ‘V’ Dielectric Coatings
- Reflections as high as 99.999%
- Wavelength range from 300 nm to 3000 nm

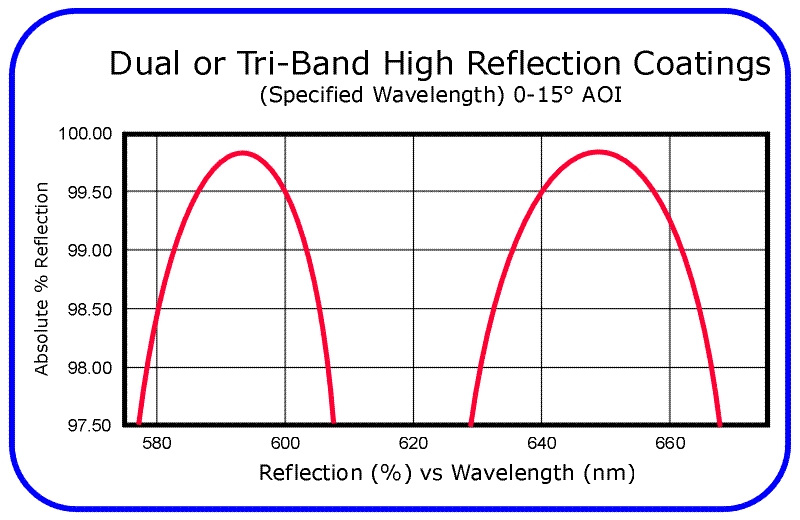

Dual Band High
Reflection Coatings
- Dual Band High Reflection Dielectric Coatings
- Tri-Band High Reflection IBS Dielectric Coatings
- Reflections as high as 99.9%
- Wavelength range from 300 nm to 3000 nm
- Total Loss as low as 15 ppm (scatter & absorption)

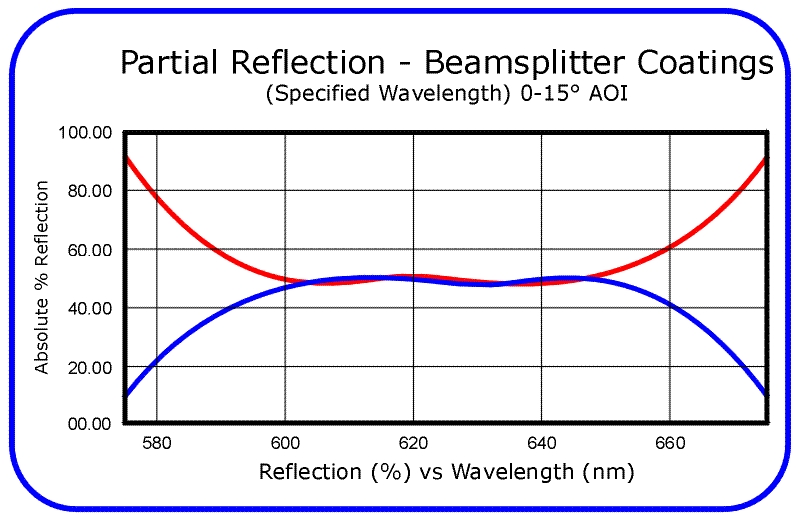

Partial Reflector or
Beamsplitter Coatings
- Partial Reflection or Beamsplitter Dielectric Coatings
- Customer specified Reflection/Transmission
- Customer specified Wavelength
- Wavelength range from 300 nm to 3000 nm
- Total loss as low as 15 ppm (scatter & absorption)

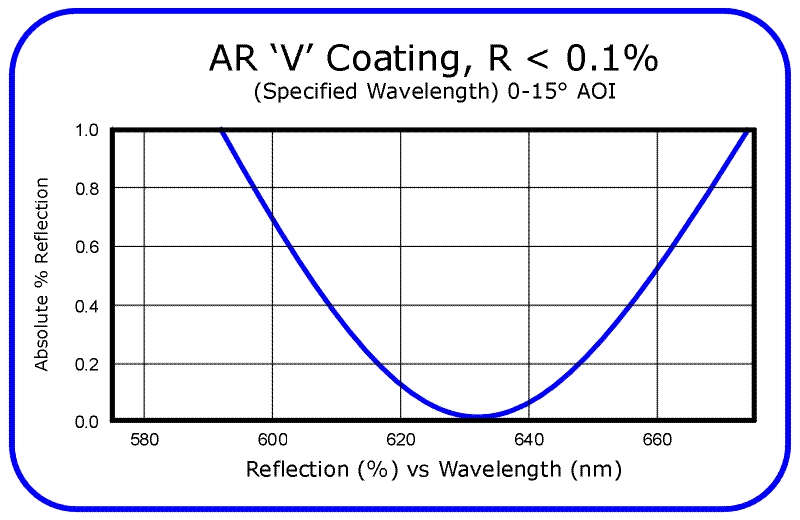

Anti-Reflection ‘V’ Coatings @ 0° – 15° AOI
- Anti-Reflection ‘V’ Dielectric Coatings
- 0° to 15° Angle of Incidence
- Wavelength range from 300 nm to 3000 nm
- Reflection < 0.1% typical (< 0.01% possible)
- Total loss as low as 15 ppm (scatter & absorption)

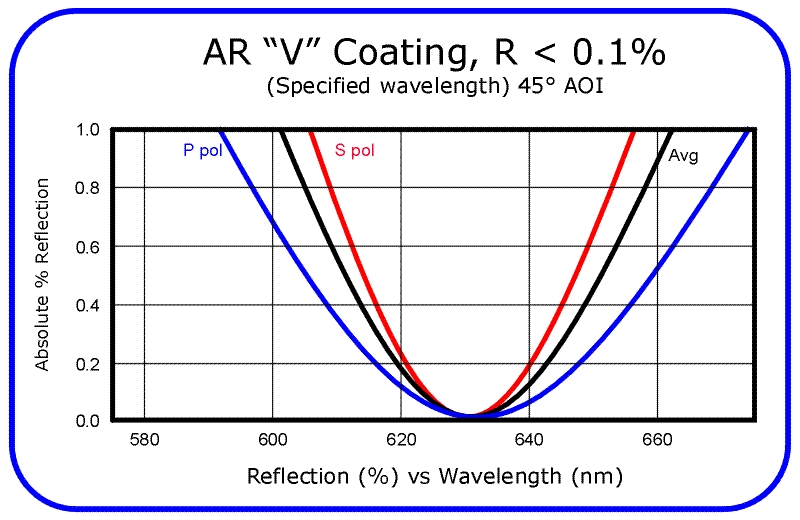

Anti-Reflection ‘V’ Coatings @ 45° AOI
- Anti-Reflection ‘V’ Dielectric Coatings
- 45° Angle of Incidence
- Wavelength range from 300 nm to 3000 nm
- Reflection < 0.1% typical (< 0.01% possible)
- Total loss as low as 15 ppm (scatter & absorption)

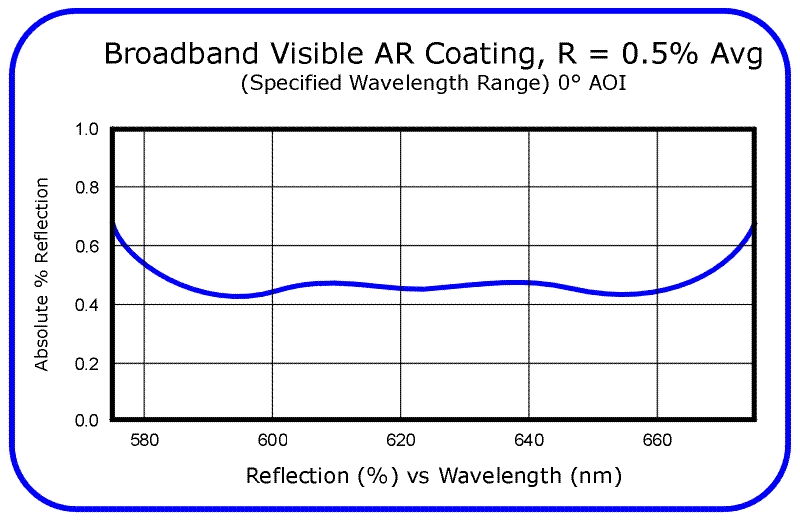

Broadband Anti-Reflection Coatings
- Broad Band Anti-Reflection IBS Dielectric Coatings
- You specify the wavelength of interest
- Wavelength range from 300 nm to 3000 nm
- Reflection < 0.5% typical (maximum R < 1%)
- Total loss as low as 15 ppm (scatter & absorption)
